lab-06 - Azure policy Compliance, Remediation and Exemptions¶
You did a good job implementing Azure Policy Governance model to support our company policy.
Let's see if our resources are compliant with the policy.
Task #1 - check policy compliance¶
Navigate to the iac-ws7-rg->Policy->Compliance and check Compliance status. You should see something similar to this (you may have different numbers)
From here we can see the status for each individual policy assignment and the total score. In my case the score is 36%, which is quite low.
I can also see that:
- 7 out of 10 resources don't inherit IAC-Owner tag from subscription level
- 6 out of 10 resources don't inherit IAC-Department tag from resource group
- 2 out of 9 resources don't follow naming convention
Let's try to fix it by running remediation task.
Task #2 - remediate non-compliant resources of [IAC] - Inherit IAC-Owner tag from the subscription policy assignment¶
Resources that are non-compliant to policies with deployIfNotExists or modify effects can be put into a compliant state through Remediation. Remediation is accomplished through remediation tasks that deploy the deployIfNotExists template or the modify operations of the assigned policy on your existing resources and subscriptions, whether that assignment is on a management group, subscription, resource group, or individual resource.
Let's start with [IAC] - Inherit IAC-Owner tag from the subscription policy assignment. Click on it and it will show you the detailed information about non-compliant resources.
Click on Create remediation task button to start remediation. At the New remediation, make sure that the scope is correct (it should be scoped to iac-ws7-rg), and check that it shows resources to be remediated. Click on Remediate button to start remediation task.

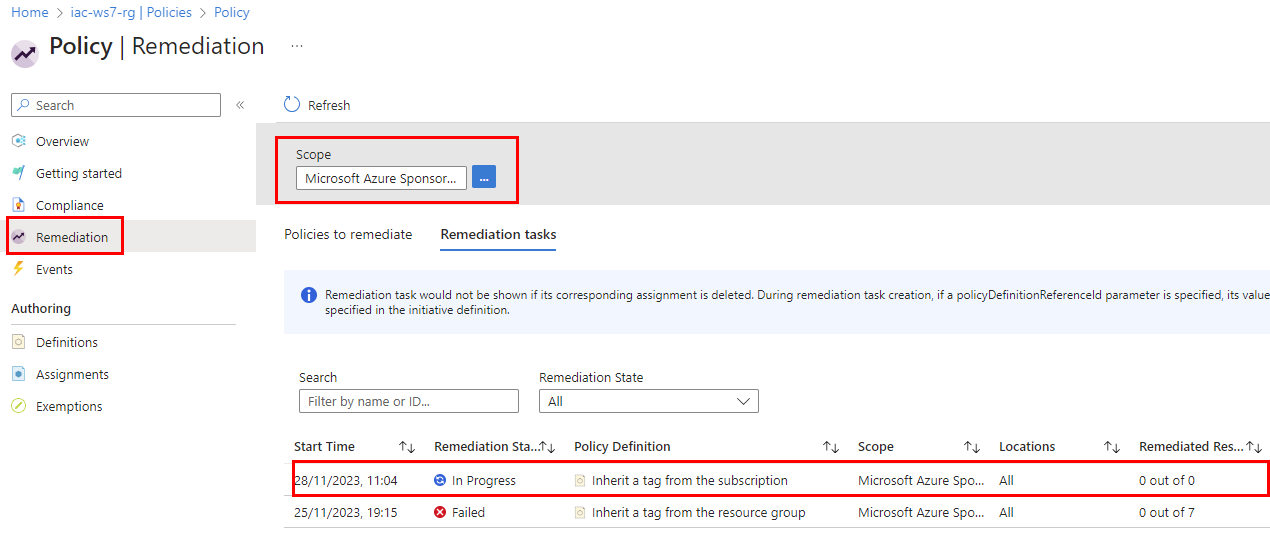

The remediation task will start. To check the status, navigate to the iac-ws7-rg->Policy->Remediation and click on Remediation tasks tab. If you don't see any tasks, check your scope (it should be you subscription/iac-ws7-rg).
Eventually, you should see that remediation task is Succeeded and you can see how many resources were remediated.
Go back to iac-ws7-rg->Policy->Compliance tab and check the status. You should see that [IAC] - Inherit IAC-Owner tag from the subscription assignment compliant now and the overall score increased to, in my case, 42%.
Task #3 - remediate non-compliant resources of [IAC] - Inherit IAC-Department tag from the resource group policy assignment¶
Repeat the same exercise for [IAC] - Inherit IAC-Department tag from the resource group policy assignment
Task #4 - create exemption rule for non-compliant resources¶
Open detailed compliance page for [IAC] - Enforce Naming Convention policy assignment.
It shows that two resources don't follow naming convention. This is a typical situation when you introduce Azure policy to already existing Azure Environment.
[IAC] - Enforce Naming Convention policy is deny policy, therefore Create remediation task is not available.
Now, try to modify NSG vnet2-workload-nsg, for example, by adding a tag to it:
You will not be able to update NSG, because it's name is not compliant with naming convention.
In this case, you can add new exclusion rule and exclude this resource from the policy. Click on Create exemption button, fill in the form and click Review and Create.
You can find all exemption rules under iac-ws7-rg->Policy->Exemptions tab.
With exemption in place, try to add new tag to the vnet2-workload-nsg NSG
This time, you should be able to update NSG.

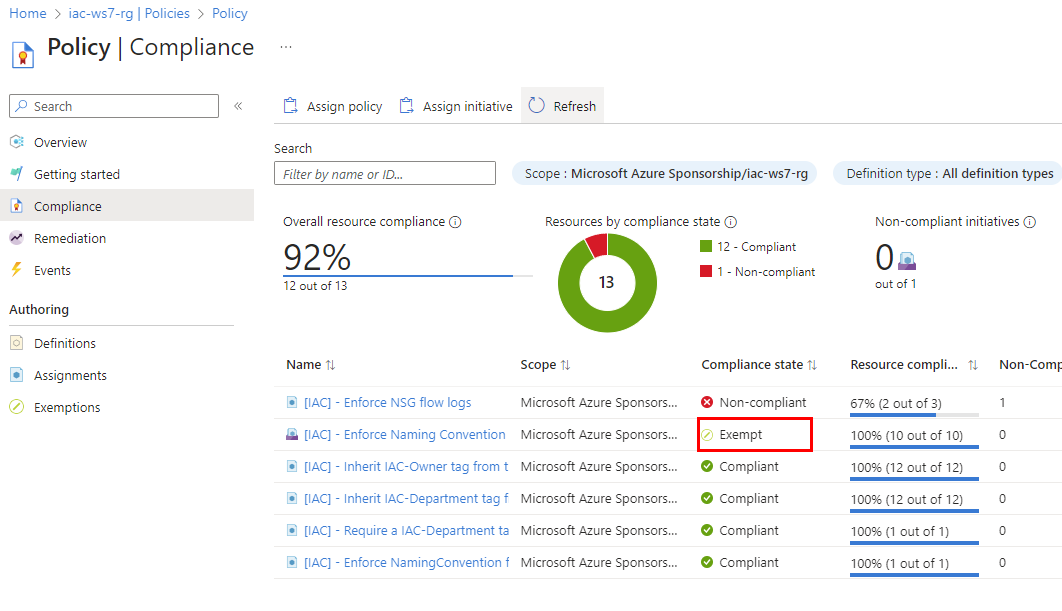

Go back to iac-ws7-rg->Policy->Compliance tab and check the status. (Eventually) You should see that [IAC] - Enforce Naming Convention assignment compliant now, with a Exempt remark at the Compliance state field and the overall score increased to, in my case, 92%. We are almost there!
Task #5 - check NSG flow logs settings of iac-ws7-test-nsg¶
As you remember, we cerated new iac-ws7-test-nsg NSG as part of lab-05. Now let's check if NSG flow log was configured by the [IAC] - Enforce NSG flow logs policy.

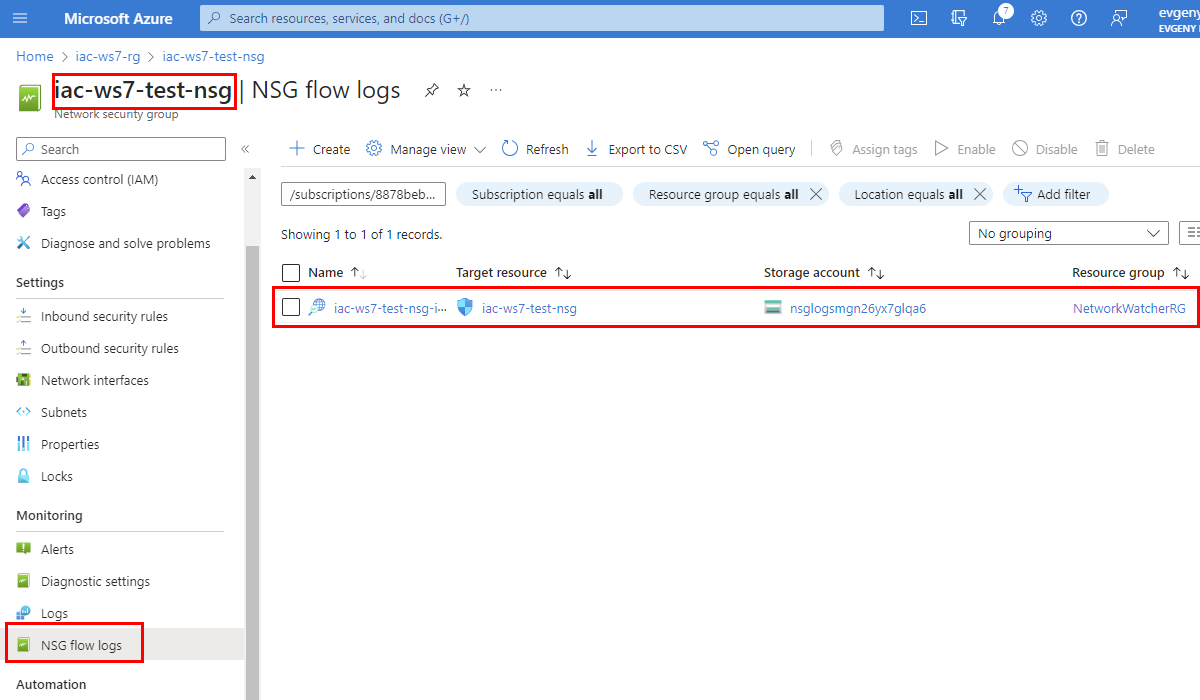

Navigate to the iac-ws7-test-nsg->Monitoring->Flow logs and check that flow log is configured. In case it was.
When DINE policy starts, it will create regular ARM deployment. In our case, policy will deploy flowlogs into NetworkWatcherRG resource group. You can check the status of the deployment by navigating to the Your subscription->NetworkWatcherRG->Deployments and check the status of the deployment.
Deployments started by policy will be prefixed with PolicyDeployment- prefix. You can also check the ARM template that was used for deployment. Open latest PolicyDeployment-xxx deployment and navigate to the Template tab.
As you can see, it contains a regular ARM template that deploys "Microsoft.Network/networkWatchers/flowLogs resource.
