lab-05 - Deploy and configure Network Security Group flow logs with Deploy If Not Exists (DINE) policy

The deployIfNotExists effect makes it possible to deploy an Azure Resource Manager template (ARM template) when creating or updating a resource that isn't compliant. Policy assignments with effect set as DeployIfNotExists require a managed identity to do remediation.

Task #1 - Deploy and configure NSG flow logs using a built-in policy

According to our company policy, all Network Security Groups (NSG) must have flow logs enabled and it must be deployed and configured by Azure policy. Tis way, teams owning NSG don't need to think about Flow logs configuration and Azure policy makes sure that all NSG flow logs are logged into centralices Storage Account owned by the Team Platform.

The Built-In Deploy a flow log resource with target network security group policy checks all existing network security groups in a scope by checking all resources of type Microsoft.Network/networkSecurityGroups. It then checks for linked flow logs via the flow logs property of the network security group. If the property doesn't exist, the policy deploys a flow log.

This policy requires the following parameters: - nsgRegion - The region where the network security group is located. This Policy will review NSGs only in the selected region. - storageId - A string with the storage id for the flowlogs to be sent to. - networkWatcherRG - The resource group name of the network watcher. This Policy will review NSGs only in the selected resource group. - networkWatcherName - The name of the network watcher under which the flowLog resources will be created. Make sure it belongs to the same region as the NSG

Let's create a policy assignment for Deploy a flow log resource with target network security group policy and deploy it to the scope of your subscription.

Create a file called nsg-flow-logs-assignment.bicep with the following content:

targetScope = 'subscription'

param parPolicyAssignmentName string = '[IAC] - Enforce NSG flow logs'
param parPolicyDefinitionID string = '/providers/Microsoft.Authorization/policyDefinitions/0db34a60-64f4-4bf6-bd44-f95c16cf34b9'
param parLocation string = 'norwayeast'

var varUniqueString = uniqueString(subscription().id)
var varStorageAccountName = take('nsglogs${varUniqueString}', 24)

resource resStorageAccount 'Microsoft.Storage/storageAccounts@2023-01-01' existing = {
  name: varStorageAccountName
  scope: resourceGroup('iac-ws7-rg')
}

resource resAssignment 'Microsoft.Authorization/policyAssignments@2022-06-01' = {
    name: parPolicyAssignmentName
    location: parLocation
    identity: {
        type: 'SystemAssigned'
    }
    properties: {
      displayName: parPolicyAssignmentName
      policyDefinitionId: parPolicyDefinitionID

      parameters: {
        nsgRegion: {
          value: parLocation
        }
        storageId: {
          value: resStorageAccount.id
        }
        networkWatcherRG: {
          value: 'NetworkWatcherRG'
        }
        networkWatcherName: {
          value: 'NetworkWatcher_${parLocation}'
        }
      }
    }
}

var varContributorRoleDefinitionId = '/providers/Microsoft.Authorization/roleDefinitions/b24988ac-6180-42a0-ab88-20f7382dd24c'
resource resRoleAssignment 'Microsoft.Authorization/roleAssignments@2020-04-01-preview' = {
  name: guid(resAssignment.name, resAssignment.type)
  properties: {
    principalId: resAssignment.identity.principalId
    principalType: 'ServicePrincipal'
    roleDefinitionId: varContributorRoleDefinitionId
  }
}

output outAssignmentId string = resAssignment.id

Note, because this is deployIfNotExists policy, we need assign System Assigned Managed Identity it with Contributor role. You can always find required RBAC role(s) from policy definition.

Deploy policy assignment:

az deployment sub create --template-file .\nsg-flow-logs-assignment.bicep -l norwayeast

Check that policy assignment was created:

az policy assignment show -n '[IAC] - Enforce NSG flow logs'

Task #2 - run remediation task

Navigate to the Your subscription->Policy->Compliance and check the status of your policy assignment. If you you are fast enough, you will see that policy assignment is Not started.

pic

In this case, you should wait some minutes and refresh the page.

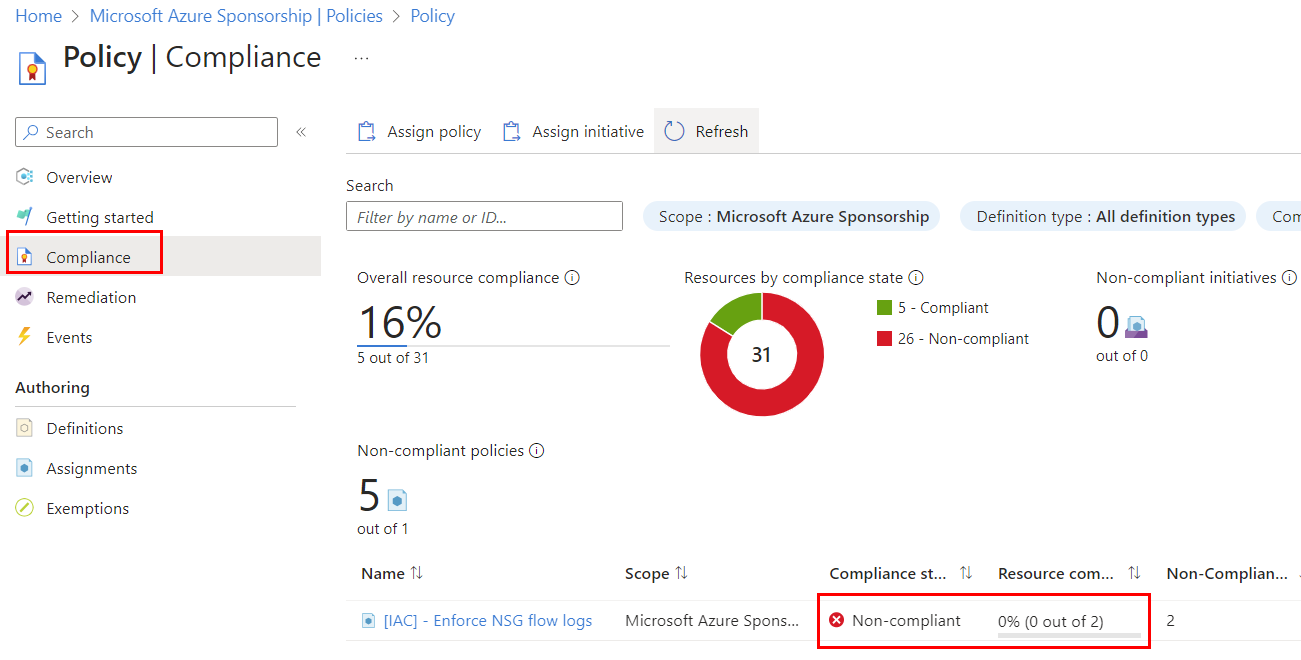

Eventually, what you should ses is that policy assignment is Non-compliant with information about how many resources are non-compliant.

pic

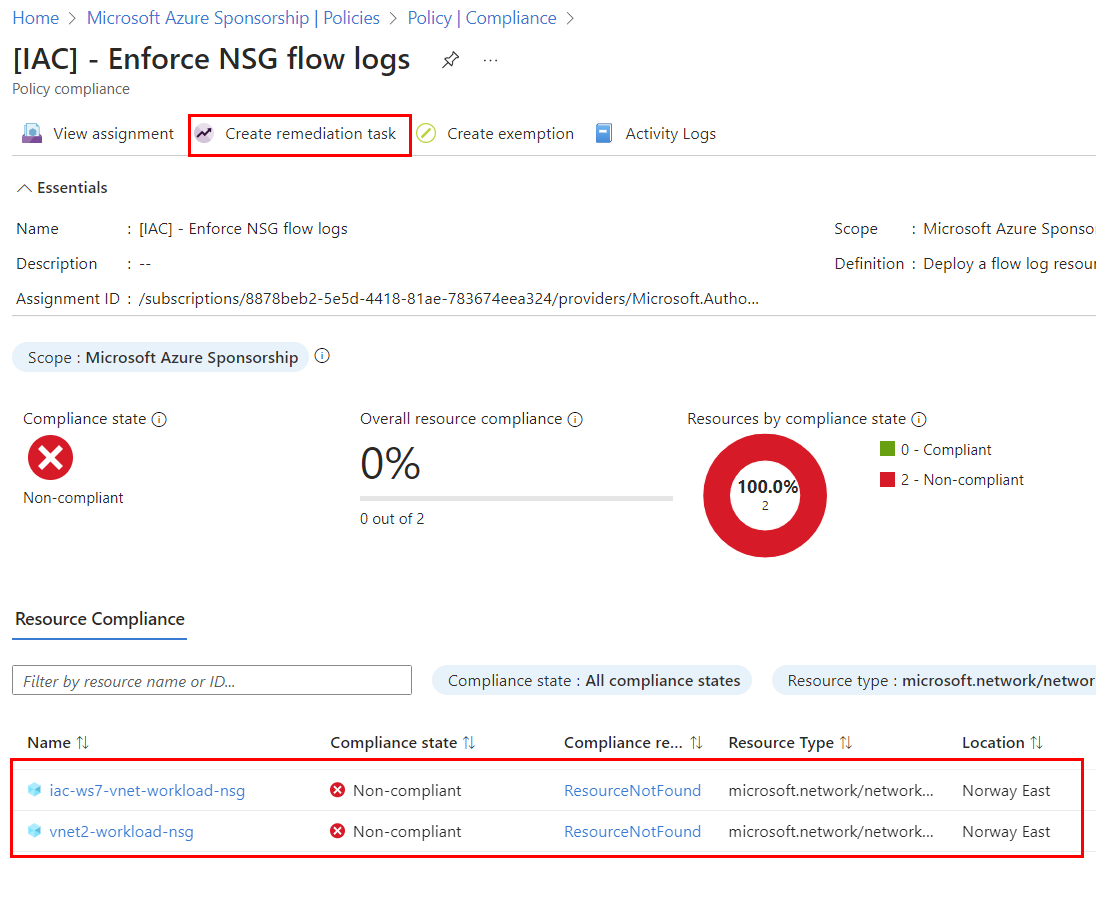

Click on the policy assignment link and you will be redirected to the page with detailed information about which resources are not compliant and why. You can also create Remediation task from this page by clicking on Create remediation task button.

pic

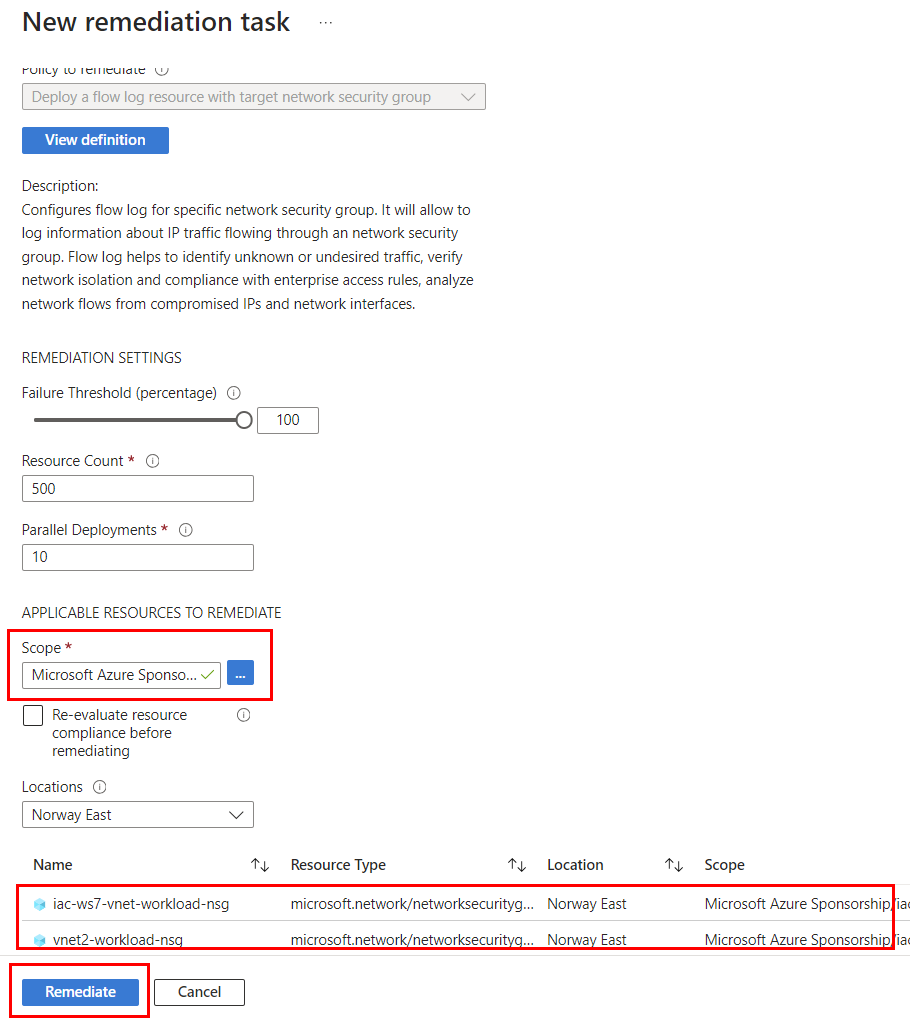

At the Create remediation task page, make sure that the scope is correct (it should be scoped to your subscription), and check that it shows resources to be remediated. Click on Remediate button to start remediation task.

pic

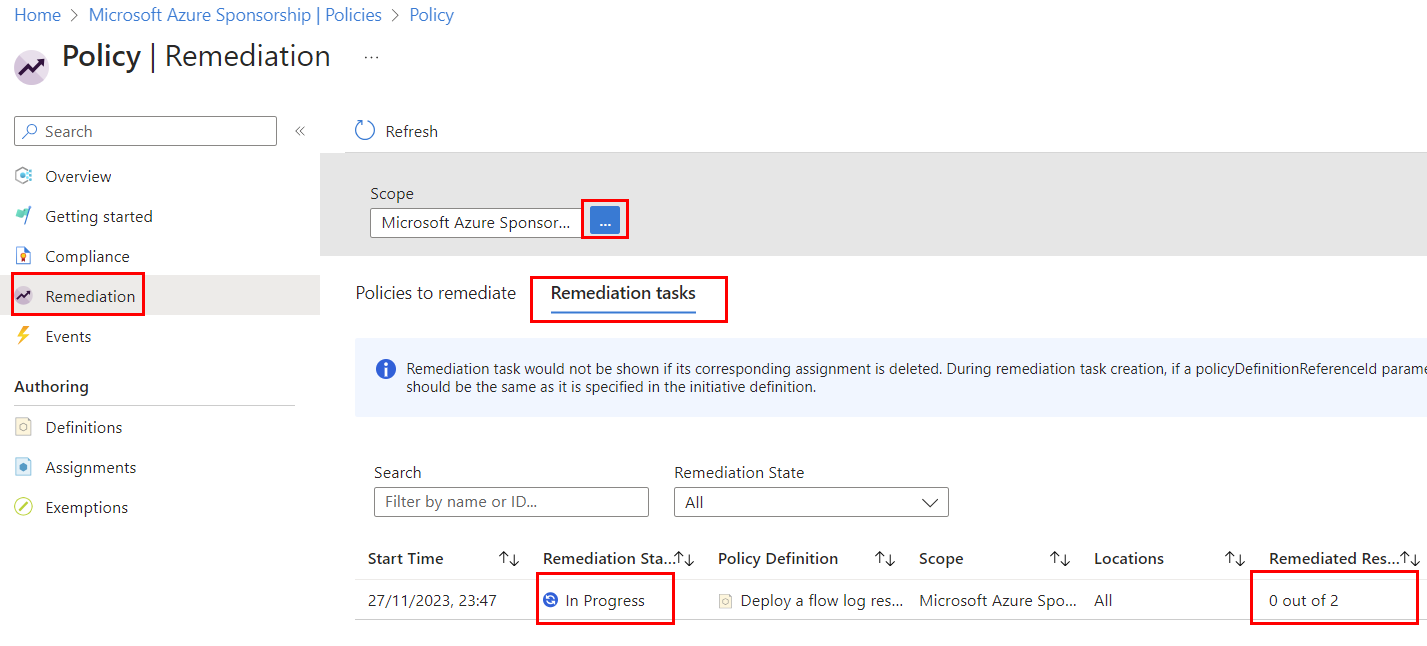

The remediation task will start. To check the status, navigate to the Your subscription->Policy->Remediation and click on Remediation tasks tab.

pic

You should see that remediation task is In progress. If you don't see any tasks, check your scope (it should be your subscription).

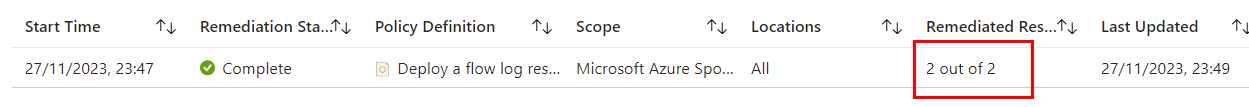

Remediation might take some minutes to complete. You can refresh the page to see the status. When it's done, the status will change to Succeeded and you can see how many resources were remediated.

pic

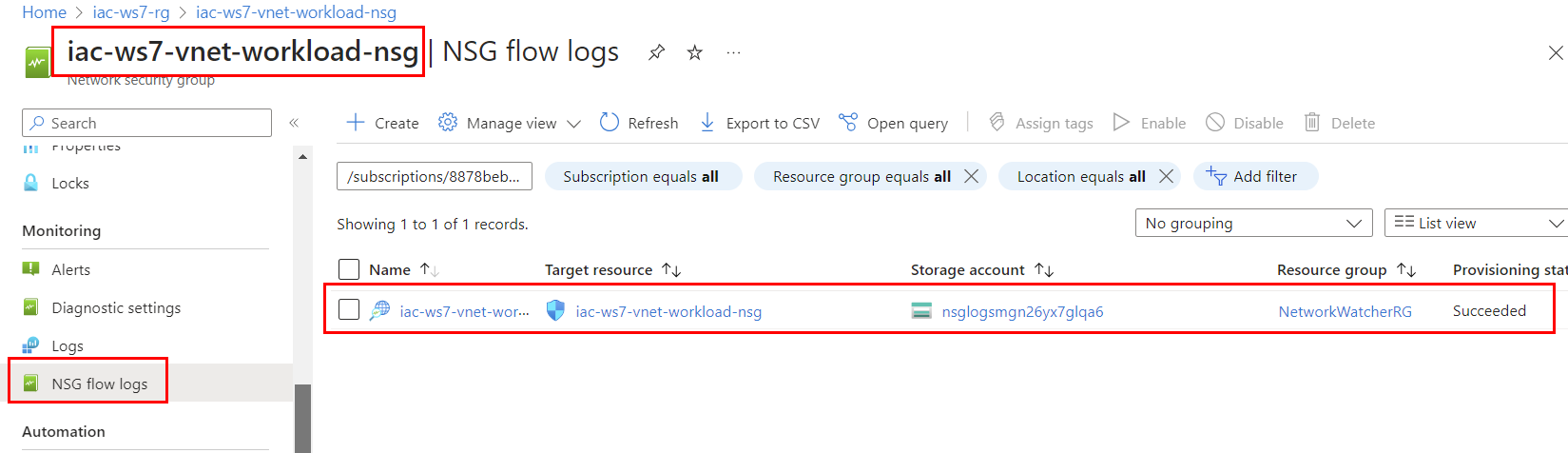

Now, goto one of your NGSs under iac-ws7-rg resource group and check that flow logs are configured.

pic

Task #3 - test policy

Let's create new NSG and check that policy will configure flow logs for it:

az network nsg create -g iac-ws7-rg -n iac-ws7-test-nsg

Now we need to wait for policy to remediate the NSG. It might take up to 15-30 min before policy will start. I suggest you to move on to the next lab and check the status of the policy later.
