lab-02 - create policy assignment for Require a tag on resource groups, Inherit a tag from the resource group and Inherit a tag from the Subscription policies at iac-ws7-rg resource group scope¶
Task #1 - Assign Require a tag on resource groups policy to your subscription using Azure portal¶
According to our company policies, all Resource groups must have a IAC-Department tag.
Azure already provides a policy definition called Require a tag on resource groups for this purpose. We just need to assign it to your Subscription scope.
This policy requires one parameter called tagName and it uses policy effect deny, which means that if the policy is not compliant, the resource group creation will be denied.
Note
When you assign Azure policy, you need to decide to what scope you want to assign it to. You can assign policy to Management Group, Subscription or Resource group scope. For this workshop, we will assign all policies to the scope of Subscription or iac-ws7-rg resource group.
Navigate to the Settings->Policies tab of your subscription.
Then click on Assign policy button.
On the Basic tab, check that scope is set to YOU-SUBSCRIPTION and click on Policy definition search box.
On the Available Definitions search tab, you can either search by name or by Policy Definition ID. The best resource to find Policy Definition ID is azadvertizer.net.
Enter Require a tag on resource groups in the search box and click Add.
This policy assignment will require that IAC-Department tags is present,and we want to follow our naming conventions, so let's call this assignment [IAC] - Require a IAC-Department tag on resource groups and goto Parameters tab.
This policy definition requires one parameter called tagName. Enter IAC-Department in the Tag Name box and click Review + create, check that everything looks good, and click Create. If there are any validation errors, fix them and try again.
After assignments are cerated, you can always find them under Assignments tab. Navigate to Settings->Policies tab of your subscription and click on Assignments tab.
You should now see your newly created policy assignment.
Task #2 - Test policy¶
Let's try to create new Resource group without IAC-Department tag and check if the policy is working as expected.
You should see an error message similar to this one:
(RequestDisallowedByPolicy) Resource 'iac-ws7-test-rg' was disallowed by policy. Policy identifiers: '[{"policyAssignment":{"name":"[IAC] - Require a IAC-Department tag on resource groups","id":"/subscriptions/8878beb2-5e5d-4418-81ae-783674eea324/providers/Microsoft.Authorization/policyAssignments/bc5fc9ede0044888b9bfe545"},"policyDefinition":{"name":"Require a tag on resource groups","id":"/providers/Microsoft.Authorization/policyDefinitions/96670d01-0a4d-4649-9c89-2d3abc0a5025"}}]'.
As you can see, the creation of resource group was denied.
Now let's try to create new Resource group with IAC-Department tag.
# Create new resource group with required tags
az group create -n iac-ws7-test-rg -l norwayeast --tags IAC-Department=IaC
Task #3 - Assign Inherit a tag from the resource group policy to iac-ws7-rg resource group using az cli¶
Next convention from our company policies is that all resources deployed into Resource Group should inherit tags from resource group. There is Inherit a tag from the resource group policy that can help us with this. This is Modify policy, which means that if resource doesn't have a tag, the policy will add it.
Let's create new policy assignment for Inherit a tag from the resource group policy, using az cli. This time we create assignment at the iac-ws7-rg resource group scope.
We need to specify the name of the Tag that we want to inherit from the resource group. In our case, it is IAC-Department. We also want to follow our naming conventions, therefore we call this assignment [IAC] - Inherit Department tag from the resource group.
az policy assignment create command requires the following parameters:
--name- name of the policy assignment--display-name- display name of the policy assignment--resource-group- the resource group where the policy will be applied. In our case, it isiac-ws7-rg--policy- policy name or definition ID--params- JSON formatted string with parameter values of the policy rule. In our case, we need to providetagNameparameter with valueIAC-Department.--mi-system-assigned- use system assigned managed identity--location- location of the policy assignment. In our case, it isnorwayeast
Since this is Modify policy and it will modify resources, it requires a managed identity with Contributor role. Therefore we need to use --mi-system-assigned parameter.
# Create new policy assignment
az policy assignment create --name "[IAC] - Inherit IAC-Department tag from the resource group" --display-name "[IAC] - Inherit IAC-Department tag from the resource group" --resource-group iac-ws7-rg --policy cd3aa116-8754-49c9-a813-ad46512ece54 --params '{\"tagName\": { \"value\": \"IAC-Department\"}}' --mi-system-assigned --location norwayeast
# Assign Contributor role to the managed identity
az role assignment create --role Contributor --assignee $(az policy assignment show -n '[IAC] - Inherit IAC-Department tag from the resource group' -g iac-ws7-rg --query identity.principalId -o tsv) -g iac-ws7-rg
Now let's check if the policy was created successfully.
# Get all policy assignments for iac-ws7-rg resource group
az policy assignment list -g iac-ws7-rg --query [].displayName -otsv

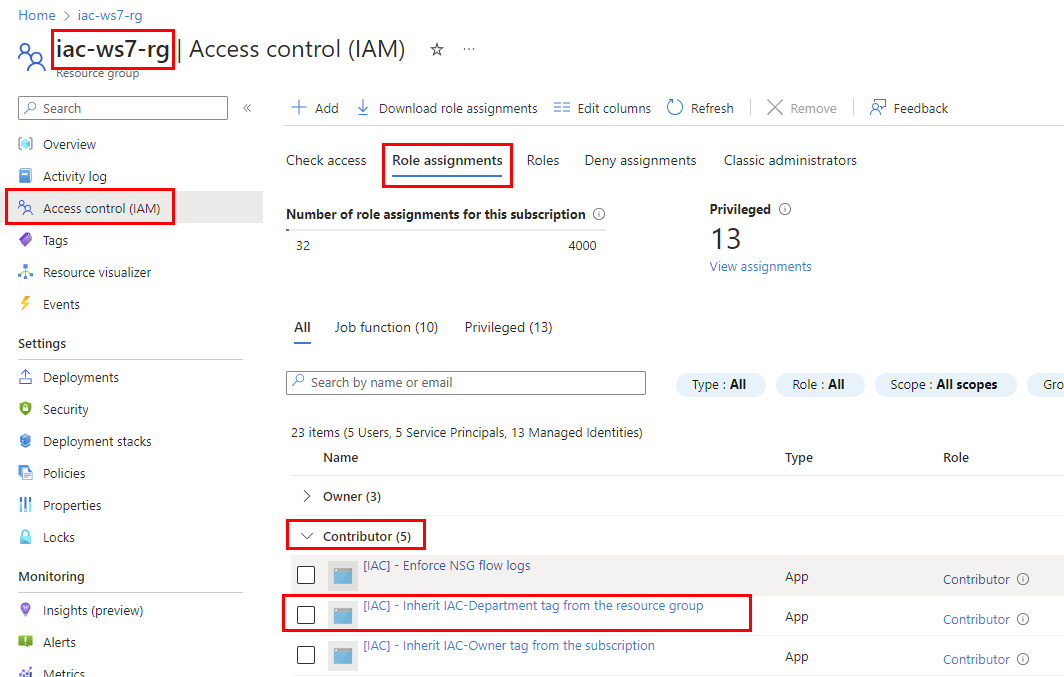

And check that policy assignment managed identity was has correct RBAC settings.
Task #4 - Test policy¶
Let's test that policy is working as expected.
First, let's add IAC-Department tag to iac-ws7-rg resource group.
# Get resource group id
$rgId=$(az group show -n iac-ws7-rg --query id --output tsv)
# Add IAC-Department tag to iac-ws7-rg resource group
az tag create --resource-id $rgId --tags IAC-Department=IaC
Now, create any resource in iac-ws7-rg resource group. For example, let's cerate Managed Identity, just because it is quick to create.

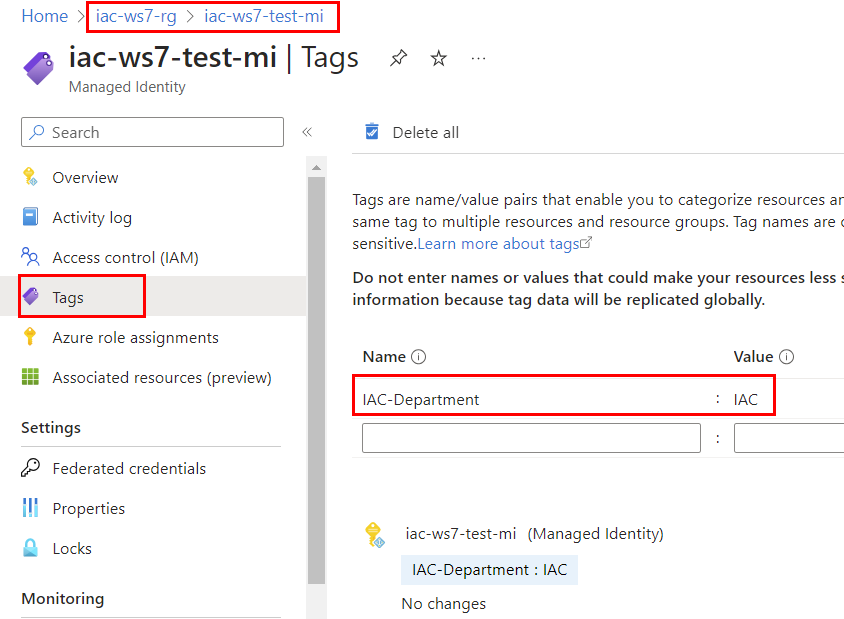

As you can see from the output, the new managed identity inherited IAC-Department tag from iac-ws7-rg. You can also check it in the Azure portal.
Task #5 - Create Inherit a tag from the Subscription policy assignment using Bicep¶
Yet another convention from our company policies is that all resources must inherit tags from Subscription. Inherit a tag from the subscription policy can can be used for this us-case. As with Inherit a tag from the resource group, this is Modify policy, which means that if resource doesn't have a tag, the policy will add it.
Let's create new policy assignment for Inherit a tag from the subscription policy, using Bicep. This time, let's inherit IAC-Owner tag, therefore we call this assignment [IAC] - Inherit IAC-Owner tag from the subscription. The assignment scope for this policy is iac-ws7-rg resource group.
Create assignment.bicep file with the following content:
param parPolicyAssignmentName string = '[IAC] - Inherit IAC-Owner tag from the subscription'
param parPolicyDefinitionID string = '/providers/Microsoft.Authorization/policyDefinitions/b27a0cbd-a167-4dfa-ae64-4337be671140'
param parLocation string = resourceGroup().location
resource resAssignment 'Microsoft.Authorization/policyAssignments@2022-06-01' = {
name: parPolicyAssignmentName
location: parLocation
identity: {
type: 'SystemAssigned'
}
properties: {
displayName: parPolicyAssignmentName
policyDefinitionId: parPolicyDefinitionID
parameters: {
tagName: {
value: 'IAC-Owner'
}
}
}
}
var varContributorRoleDefinitionId = '/providers/Microsoft.Authorization/roleDefinitions/b24988ac-6180-42a0-ab88-20f7382dd24c'
resource resRoleAssignment 'Microsoft.Authorization/roleAssignments@2020-04-01-preview' = {
name: guid(resAssignment.name, resAssignment.type)
properties: {
principalId: resAssignment.identity.principalId
principalType: 'ServicePrincipal'
roleDefinitionId: varContributorRoleDefinitionId
}
}
output outAssignmentId string = resAssignment.id
This is Modify type of policy, therefore we need to configure that policy assignment uses System Assigned Managed Identity with Contributor role assigned to it.
Run the following command to deploy the policy assignment to iac-ws7-rg resource group:
# Create new policy assignment
az deployment group create --name 'assign-policy' --resource-group 'iac-ws7-rg' --template-file assignment.bicep
# Check that assignment was created
az policy assignment list -g iac-ws7-rg --query [].displayName -otsv
Navigate to iac-ws7-rg->Access control (IAM)->Role assignments tab and check Contributor list. You now should see that new managed identity with the same name as our policy assignment is assigned to Contributor role.
Task #6 - Test policy¶
Let's test that policy is working as expected.
First, let's add IAC-Owner tag to your subscription.
# Get subscription id
$subscriptionId=$(az account show --query id --output tsv)
# Add IAC-Owner tag to subscription
az tag create --resource-id /subscriptions/$subscriptionId --tags IAC-Owner=JamesBond
Next, create another instance of Managed Identity.

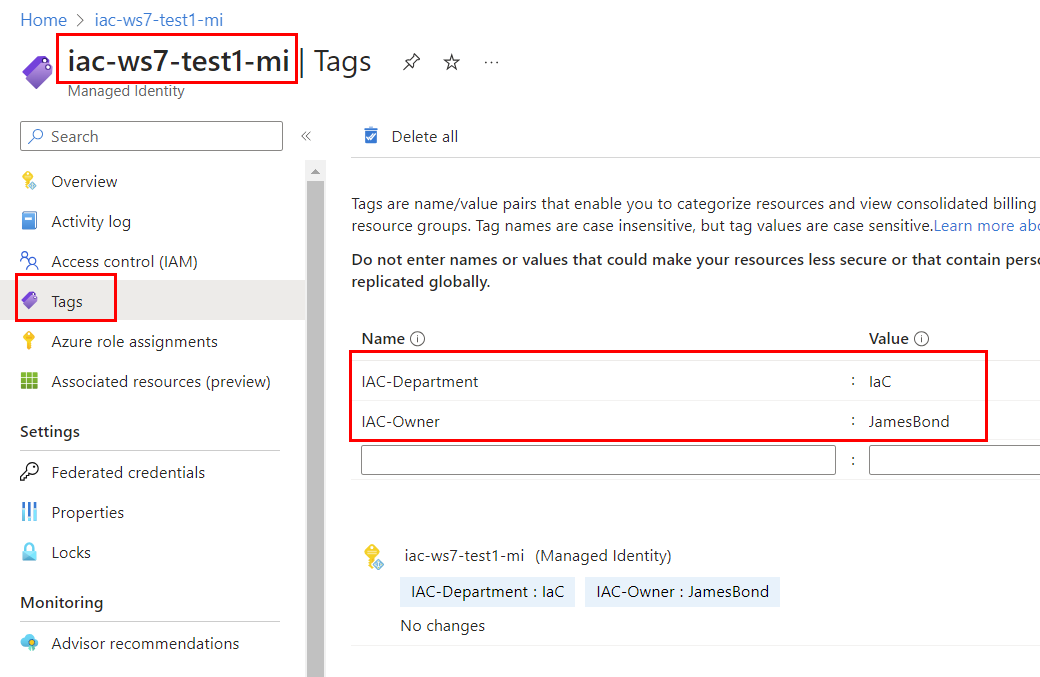

As you can see from the output, the new managed identity inherited both tags, IAC-Department from iac-ws7-rg resource group and IAC-Owner from Subscription. You can also check it in the Azure portal.
