lab-03 - configure Azure Firewall Network Rules to allow spoke-to-spoke connectivity

To allow traffic between spokes, we need to create an Azure Firewall Network rules specifying what kind of traffic is allowed.

Let's implement the following rules: - Allow ICMP (ping) traffic between spokes - Allow SSH (TCP:22) from vm-spoke1-westeurope to vm-spoke2-westeurope

Task #1 - create Network Rule to allow ICMP (ping) traffic between spokes

Create spokes-network-rules.bicep file with the following content:

param parLocation string = 'westeurope'

resource firewallPolicies 'Microsoft.Network/firewallPolicies@2024-07-01' existing = {
  name: 'nfp-${parLocation}'
}

var spokeIPs = [
      '10.9.2.0/24'
      '10.9.1.0/24'
    ]

resource spokesRuleCollectionGroup 'Microsoft.Network/firewallPolicies/ruleCollectionGroups@2023-05-01' = {
  parent: firewallPolicies
  name: 'SpokesFirewallNetworkRuleCollectionGroup'
  properties: {
    priority: 200
    ruleCollections: [
      {
        name: 'spokes-net-rc01'
        ruleCollectionType: 'FirewallPolicyFilterRuleCollection'
        priority: 100
        action: {
          type: 'Allow'
        }
        rules: [
        {
            name: 'allow-ICMP-between-spokes'
            ruleType: 'NetworkRule'
            description: 'Allow ping between spokes'
            sourceAddresses: spokeIPs
            ipProtocols: [
              'ICMP'
            ]
            destinationPorts: [
                '*'
            ]
            destinationAddresses: spokeIPs
          }
        ]
      }
    ]
  }
}

This script creates a rule collection group spokes-net-rc01 with network rule allow-ICMP-between-spokes that allows ICMP traffic between the two spokes: 10.9.1.0/24 and 10.9.2.0/24.

Deploy it using az cli:

az deployment group create --resource-group rg-westeurope-azfw-labs --template-file spokes-network-rules.bicep

When deployed, get back to your spoke1 VM terminal session and try to ping the spoke2 VM again.

This time ping should be successful.

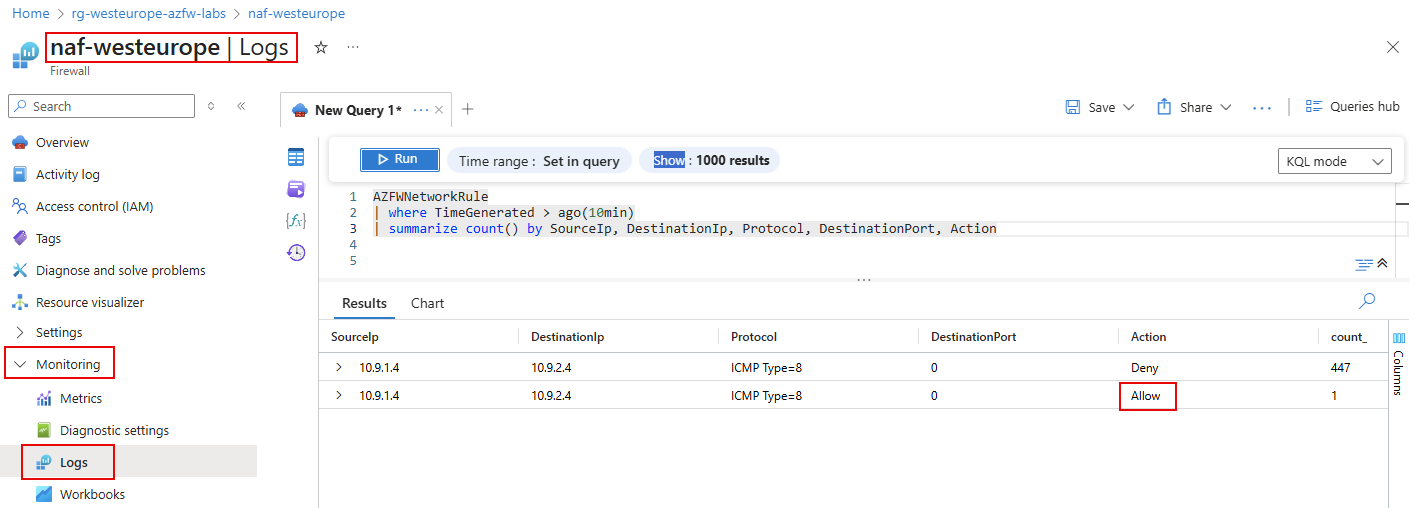

Check the Azure Firewall logs to see that traffic is allowed now. Again, it might take some minutes for the logs to appear.

AZFWNetworkRule
| where TimeGenerated > ago(10min)
| summarize count() by SourceIp, DestinationIp, Protocol, DestinationPort, Action

Task #2 - create Network Rule to allow SSH from spoke1 VM to spoke 2 VM

As we learned, by default, Azure Firewall blocks all traffic. So, if you try to ssh from vm-spoke1-westeurope to vm-spoke2-westeurope, it will fail. Let's create a network rule to allow SSH traffic from vm-spoke1-westeurope to vm-spoke2-westeurope.

Update spokes-network-rules.bicep file and add new Network rule:

param parLocation string = 'westeurope'

resource firewallPolicies 'Microsoft.Network/firewallPolicies@2024-07-01' existing = {
  name: 'nfp-${parLocation}'
}

var spokeIPs = [
      '10.9.2.0/24'
      '10.9.1.0/24'
    ]

resource spokesRuleCollectionGroup 'Microsoft.Network/firewallPolicies/ruleCollectionGroups@2023-05-01' = {
  parent: firewallPolicies
  name: 'SpokesFirewallNetworkRuleCollectionGroup'
  properties: {
    priority: 200
    ruleCollections: [
      {
        name: 'spokes-net-rc01'
        ruleCollectionType: 'FirewallPolicyFilterRuleCollection'
        priority: 100
        action: {
          type: 'Allow'
        }
        rules: [
          {
            name: 'allow-ICMP-between-spokes'
            ruleType: 'NetworkRule'
            description: 'Allow ping between spokes'
            sourceAddresses: spokeIPs
            ipProtocols: [
              'ICMP'
            ]
            destinationPorts: [
                '*'
            ]
            destinationAddresses: spokeIPs
          }
          {
            name: 'allow-ssh-from-spoke1-vm-to-spoke2-vm'
            ruleType: 'NetworkRule'
            description: 'Allow SSH from vm-spoke1-westeurope to vm-spoke2-westeurope'
            sourceAddresses: [
              '10.9.1.4'      // vm-spoke1-westeurope
            ]
            ipProtocols: [
              'TCP'
            ]
            destinationPorts: [
              '22'
            ]
            destinationAddresses: [
              '10.9.2.4'    // vm-spoke2-westeurope
            ]
          }
        ]
      }
    ]
  }
}

Deploy it using az cli:

az deployment group create --resource-group rg-westeurope-azfw-labs --template-file spokes-network-rules.bicep

When deployed, get back to your spoke1 VM terminal session and try to ssh to the spoke2 VM. Use fooBar123! as the password.

ssh iac-admin@10.9.2.4

You should be able to ssh successfully.

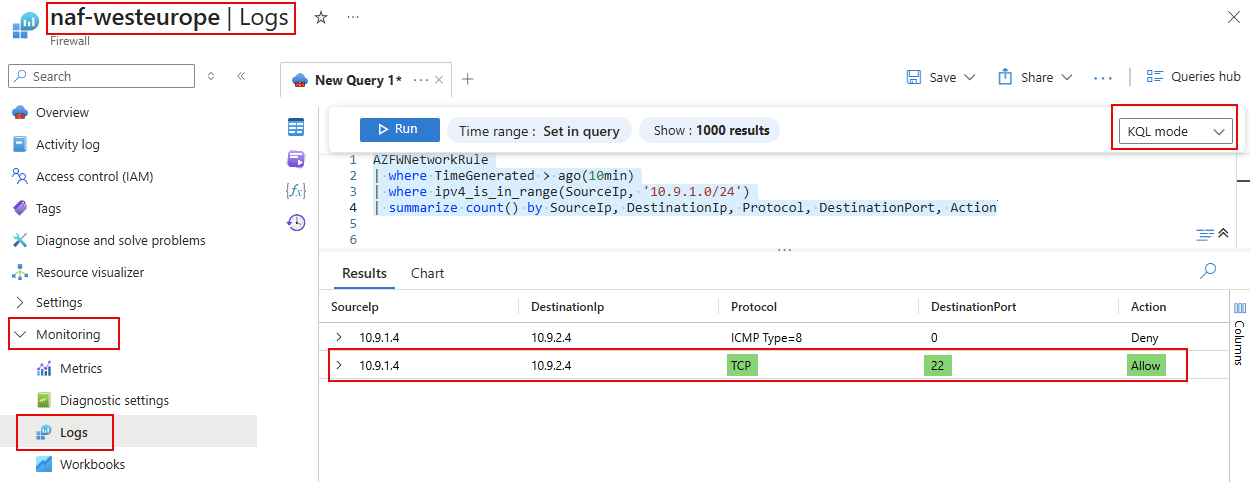

Check the Azure Firewall logs to see the allowed SSH traffic.

AZFWNetworkRule
| where TimeGenerated > ago(10min)
| where ipv4_is_in_range(SourceIp, '10.9.1.0/24')
| summarize count() by SourceIp, DestinationIp, Protocol, DestinationPort, Action

Note: You can use ipv4_is_in_range function to filter traffic from a specific subnet.
