lab-02 - configure Azure Firewall with hub-and-spoke network topology

You can implement hub-and-spoke architectures in two ways:

• Self-managed hub-and-spoke (traditional): You maintain full control over the hub virtual networks and routing configuration.
• Virtual WAN: Microsoft manages the hub virtual networks and simplifies administration through features like routing intent and routing policies.

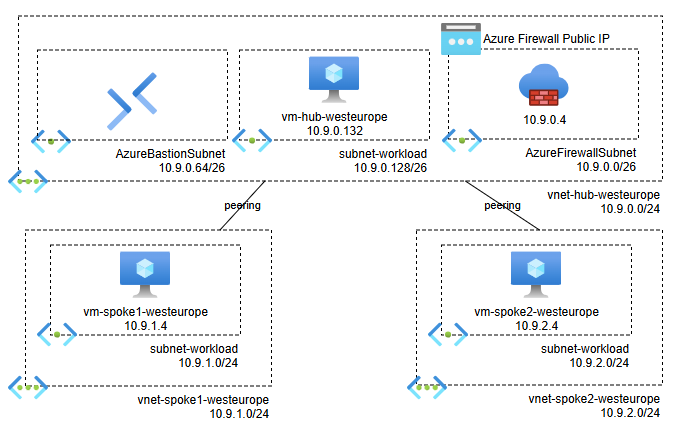

In our labs we will use a self-managed hub-and-spoke setup, which includes the following components:

• Hub: A virtual network that serves as the central connectivity point to your on-premises network through VPN or ExpressRoute. Network security devices like Azure Firewalls is deployed in the hub virtual network as well.
• Spokes: Virtual networks that peer with the hub and host your workloads.

For our lab, we will look at the following potential traffic flow:

• Spoke-to-spoke traffic
• Spoke-to-internet traffic
• Internet-to-spoke traffic

Task #1 - implement spoke-to-spoke and spoke-to-internet connectivity

Spoke-to-spoke traffic

As we learned from lab1, spokes are peered into the hub virtual network and aren't peered to each other. Virtual network peering isn't transitive. Each spoke knows how to route to the hub virtual network by default, but not to other spokes. To fix this, we need to add a User Defined Route table for each spoke subnet with a route(s) with next hop set to Azure Firewall private IP address in the hub virtual network.

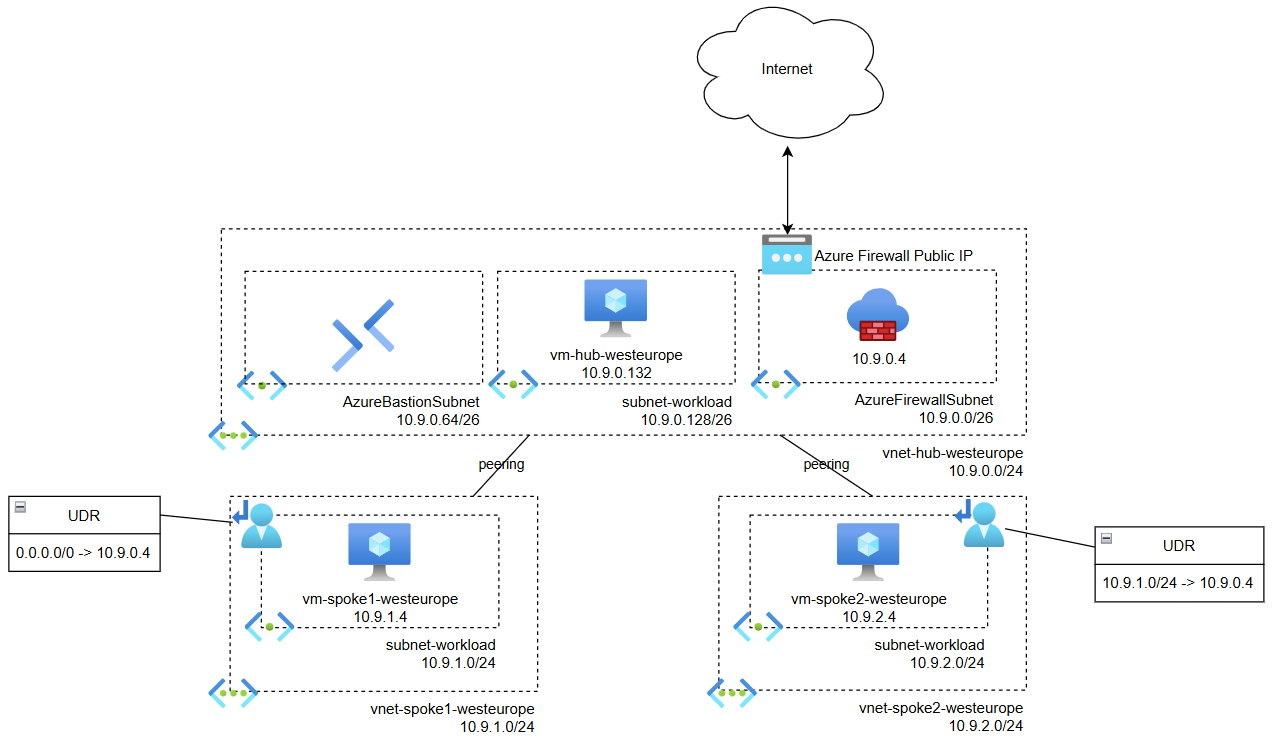

In our lab, lets define the following routing rules:

• from spoke1, everything should be routed via Azure Firewall
• from spoke2, only traffic to spoke1 should be routed via Azure Firewall

Spoke-to-internet traffic

The 0.0.0.0/0 route in the spoke1 route table also covers traffic sent to the public internet. This route overwrites the system route included in public subnets by default. Firewall rules for spoke-to-internet traffic flow will be configured at lab-04.

Internet-to-spoke traffic

Internet-to-spoke traffic flow will be covered in lab-05.

During lab-01 we already deployed Azure Firewall in the hub virtual network. Now we need to implement User Defined Routes (UDR) that will route spoke traffic via Azure Firewall. First, let's get the private IP address of the Azure Firewall using az cli.

az network firewall show -g rg-westeurope-azfw-labs -n naf-westeurope --query "ipConfigurations[0].privateIPAddress" -o tsv

If you used the original script without changing it, the private IP address of Azure Firewall should be 10.9.0.4.

Now, let's create UDR for spoke1 traffic flows. Create spoke1-udr.bicep file with the following content:

param firewallPrivateIp string = '10.9.0.4'

resource spoke1Route 'Microsoft.Network/routeTables@2021-02-01' = {
  name: 'spoke1-udr'
  location: resourceGroup().location
  properties: {
    disableBgpRoutePropagation: false
    routes: [
      {
        name: 'spoke1-udr'
        properties: {
          addressPrefix: '0.0.0.0/0'
          nextHopType: 'VirtualAppliance'
          nextHopIpAddress: firewallPrivateIp
        }
      }
    ]
  }
}

Deploy it using az cli:

# Get Azure Firewall Private IP address
$firewallIP = (az network firewall show -g rg-westeurope-azfw-labs -n naf-westeurope --query "ipConfigurations[0].privateIPAddress" -o tsv)

# Deploy UDR
az deployment group create --resource-group rg-westeurope-azfw-labs --template-file spoke1-udr.bicep --parameter firewallPrivateIp=$firewallIP

Now, we need to associate this UDR with spoke1 subnets. Let's assign it to the spoke1 subnet sing az cli:

az network vnet subnet update --resource-group rg-westeurope-azfw-labs --vnet-name vnet-spoke1-westeurope --name subnet-workload --route-table spoke1-udr

Now, let's create UDR for spoke2 traffic flows. Create spoke2-udr.bicep file with the following content:

param firewallPrivateIp string = '10.9.0.4'
param spoke1AddressRange string = '10.9.1.0/24'

resource spoke2Route 'Microsoft.Network/routeTables@2021-02-01' = {
  name: 'spoke2-udr'
  location: resourceGroup().location
  properties: {
    disableBgpRoutePropagation: false
    routes: [
      {
        name: 'spoke2-udr'
        properties: {
          addressPrefix: spoke1AddressRange
          nextHopType: 'VirtualAppliance'
          nextHopIpAddress: firewallPrivateIp
        }
      }
    ]
  }
}

Deploy it using az cli:

# Get Azure Firewall Private IP address
$firewallIP = (az network firewall show -g rg-westeurope-azfw-labs -n naf-westeurope --query "ipConfigurations[0].privateIPAddress" -o tsv)

# Deploy UDR
az deployment group create --resource-group rg-westeurope-azfw-labs --template-file spoke2-udr.bicep --parameter firewallPrivateIp=$firewallIP

Let's use Bicep to assign the UDR to the spoke2 subnet. Create spoke2-subnet.bicep file with the following content:

resource udr 'Microsoft.Network/routeTables@2021-02-01' existing = {
  name: 'spoke2-udr'
}

resource vnet 'Microsoft.Network/virtualNetworks@2021-02-01' existing = {
  name: 'vnet-spoke2-westeurope'
}

resource subnet 'Microsoft.Network/virtualNetworks/subnets@2024-07-01' = {
  name: 'subnet-workload'
  parent: vnet
  properties: {
    addressPrefixes: [
      '10.9.2.0/24'
    ]
    routeTable: {
      id: udr.id
    }
    privateEndpointNetworkPolicies: 'Disabled'
    privateLinkServiceNetworkPolicies: 'Enabled'
  }
}

Deploy it using az cli:

az deployment group create --resource-group rg-westeurope-azfw-labs --template-file spoke2-subnet.bicep

Task #2 - test and troubleshoot spoke-to-spoke connectivity

Now, let's test the connectivity between vm-spoke1-westeurope and vm-spoke2-westeurope. Connect to vm-spoke1-westeurope using Azure Bastion and ssh extensions as we did in lab-01.

$vmId = (az vm show --name vm-spoke1-westeurope --resource-group rg-westeurope-azfw-labs --query id --output tsv)
az network bastion ssh --name bastion-westeurope --resource-group rg-westeurope-azfw-labs --target-resource-id $vmId --auth-type password --username iac-admin

Once connected, try to ping vm-spoke2-westeurope private IP address 10.9.2.4.

ping 10.9.2.4

Ping will fail because spoke-to-spoke traffic is now routed via Azure Firewall and Azure Firewall, by default, blocks all traffic. To confirm this, navigate to Azure Firewall -> naf-westeurope -> Monitoring -> Logs at the portal and execute the following Kusto Query to see the blocked traffic:

AZFWNetworkRule
| where TimeGenerated > ago(10min)
| summarize count() by SourceIp, DestinationIp, Protocol, DestinationPort, Action

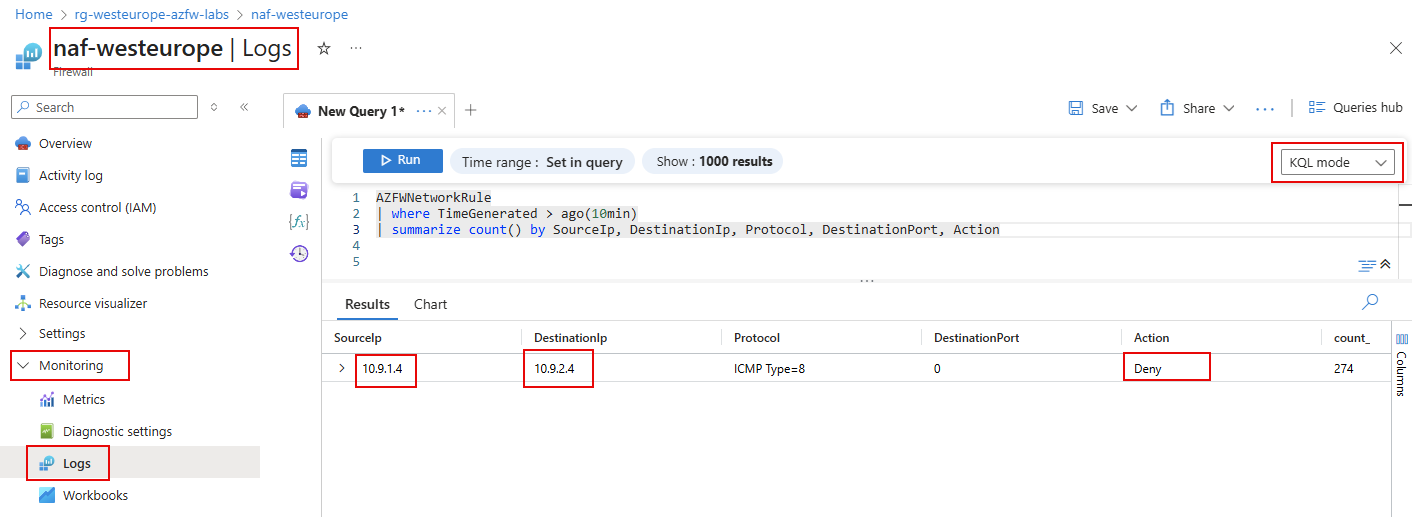

You should see the following results

As you can see, ICMP traffic (aka ping) from 10.9.1.4 (vm-spoke1-westeurope) to 10.9.2.4 (vm-spoke2-westeurope) is being blocked (Action = Deny) by Azure Firewall.

Note! There might be a delay of a few minutes before Azure Firewall logs appear in Log Analytics for querying. If you don't see logs after 5 minutes, don't waste your time and proceed to next tasks. We will get back to logs later.
