lab-04 - Implementing hub-and-spoke network topology with AVNM¶
In this lab, we will implement a Hub and Spoke network topology using Azure Virtual Network Manager (AVNM). We will create a connectivity configuration that will establish connectivity between the hub and spoke virtual networks. We will also enable direct connectivity between spokes using AVNM Direct connectivity feature.
Task #1 - create new Hub and spoke Connectivity configuration using Portal¶
To get a better understanding of what is Connectivity Configuration, let's create one using Azure portal.

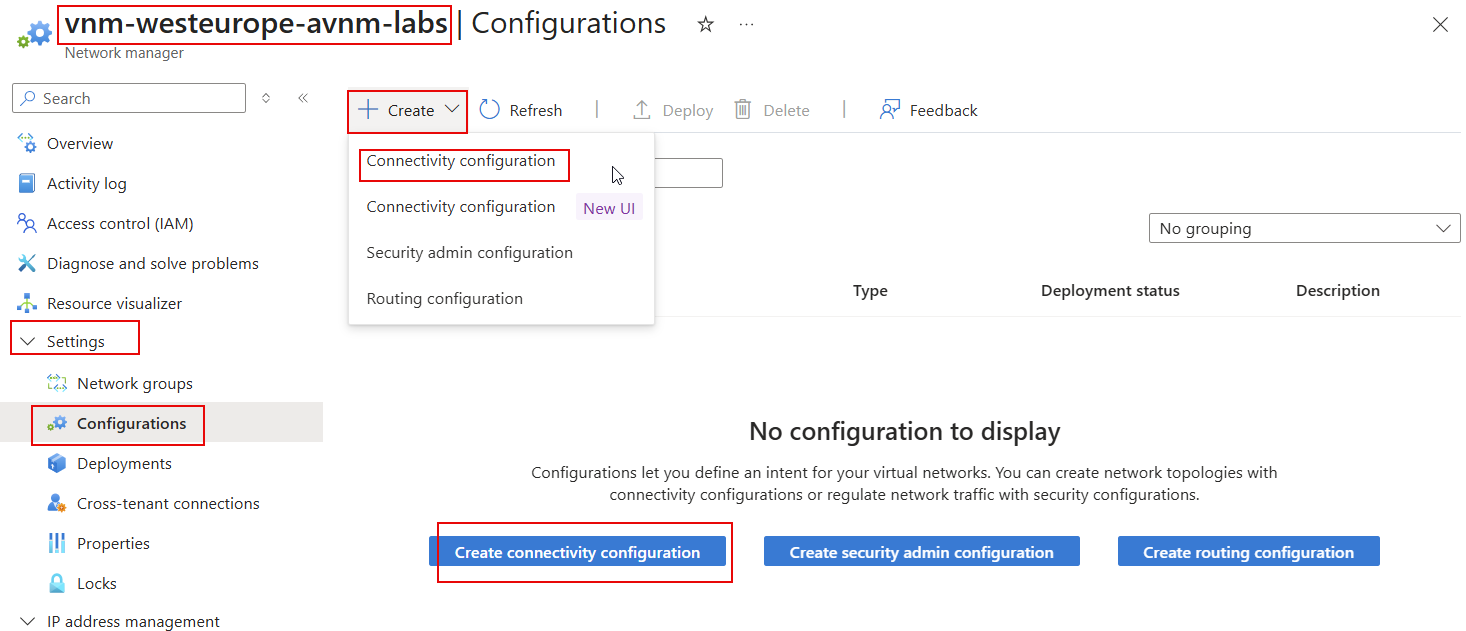

Navigate to vnm-westeurope-avnm-labs | Settings | Configurations and click Create Connectivity Configuration (or select + Create | Connectivity Configuration).
Fill in the following information at the Basics page:
| Field | Value |
|---|---|
| Name | hub-spoke-config |
| Description | Hub and Spoke Connectivity Configuration |
Click Next Topology and fill in the following information at the Topology page:
| Field | Value |
|---|---|

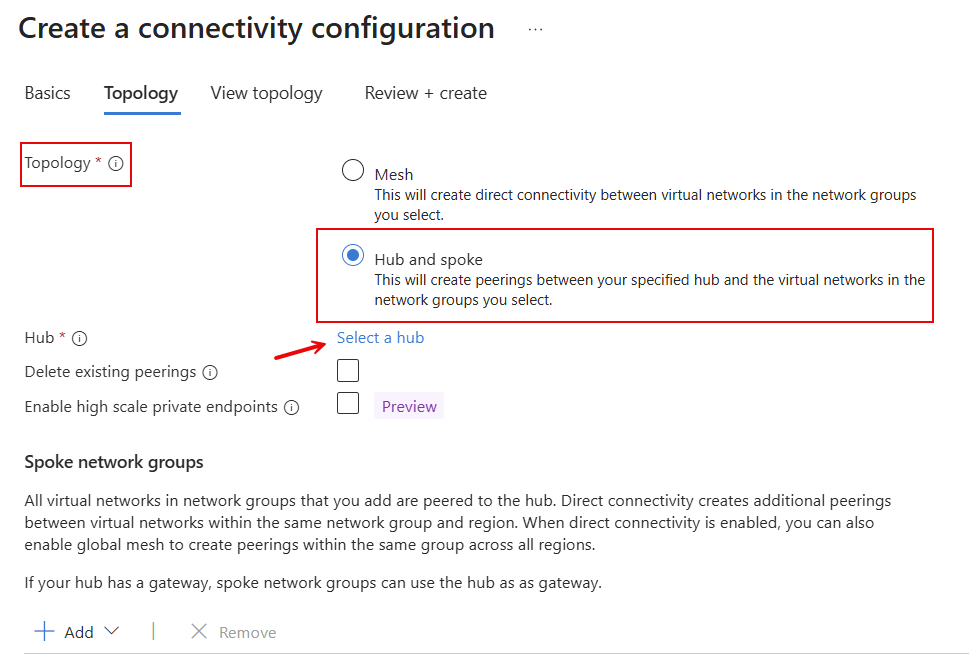

| Topology | Select Hub and Spoke |
| Spoke VNets | Select the Spoke virtual networks |
Click Select a hub and choose vnet-hub-westeurope Virtual Network.

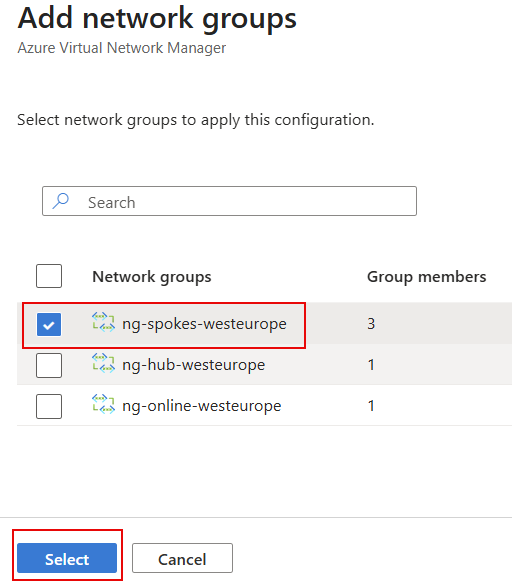

At the Spoke network groups section, click + Add, select Add Network Groups and choose ng-spokes-westeurope Network Group.

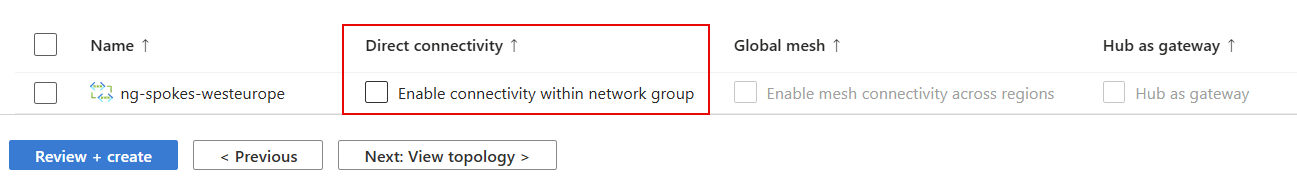

Leave Enable connectivity within network group option under Direct connectivity unchecked.
Click Review and Create and Create.
Task #2 - Deploy Connectivity Configuration¶
Configuration that we created will not take effect until it is deployed. To deploy the configuration, follow these steps:

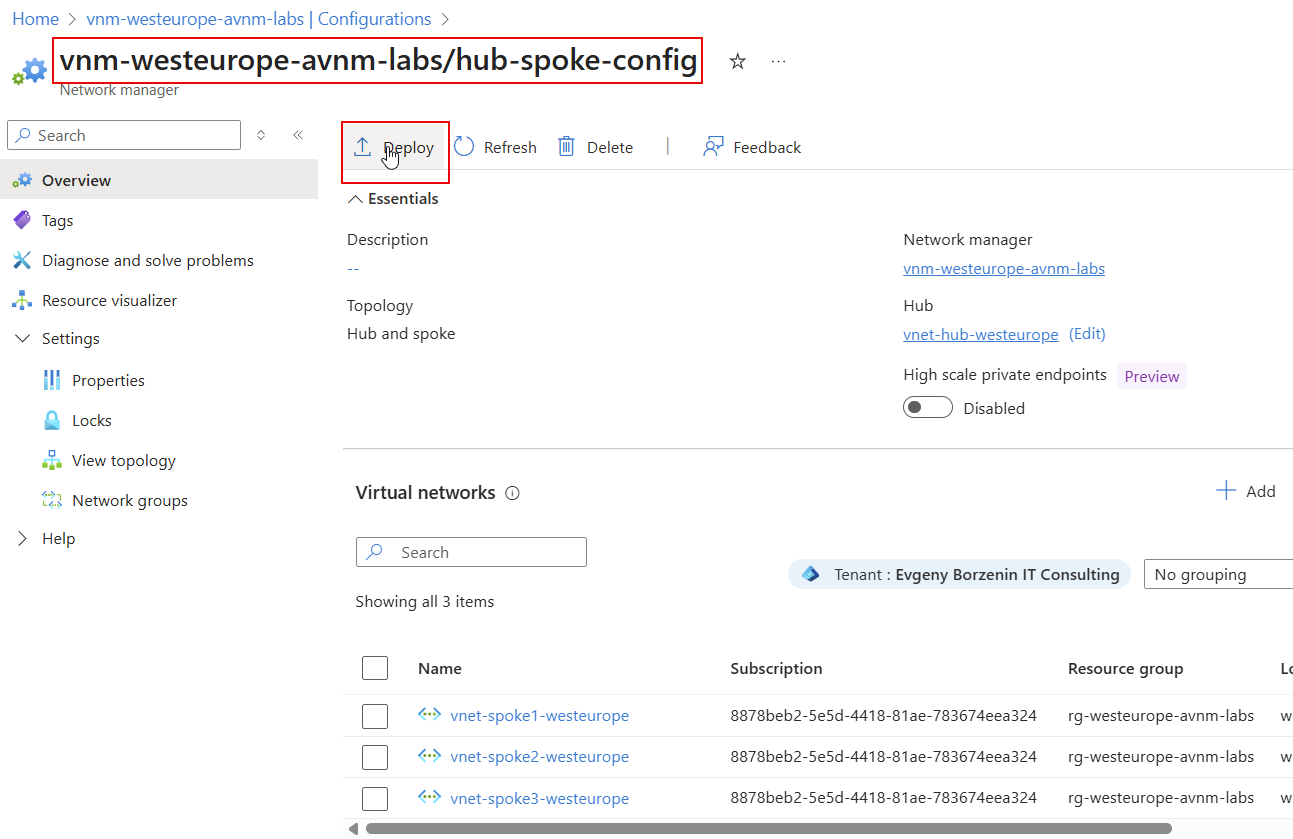

Navigate to vnm-westeurope-avnm-labs | Settings | Configurations, open hub-spoke-config Connectivity configuration and click Deploy.

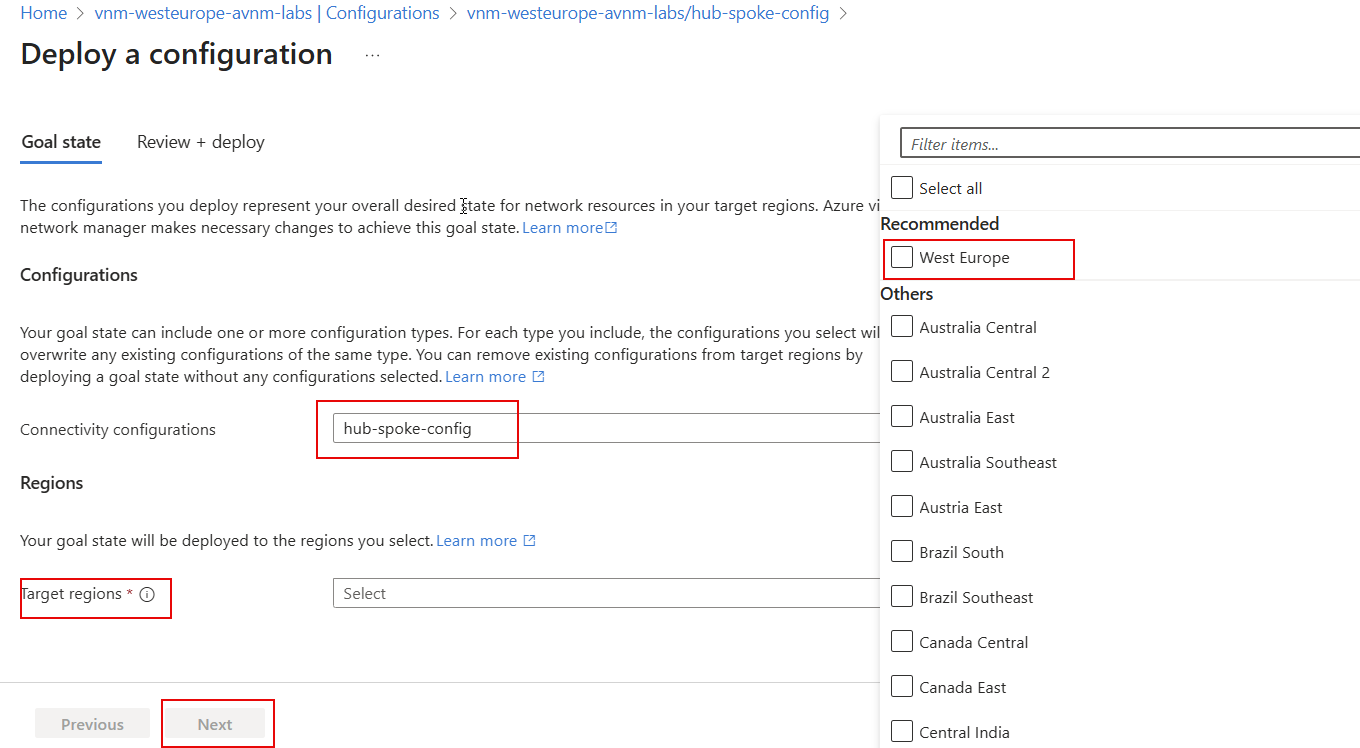

Select West Europe as a Target regions and then click Next.

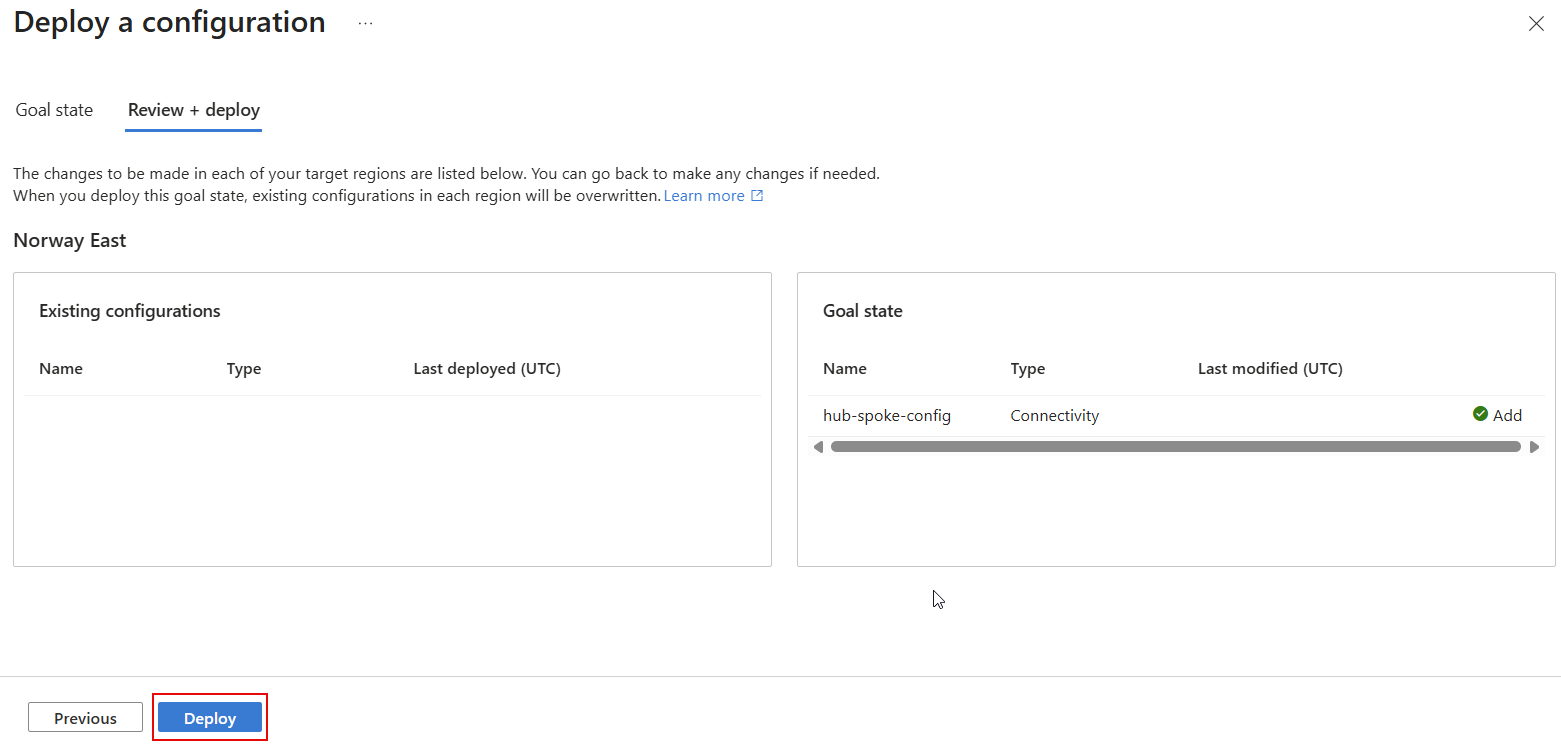

Review changes that will be deployed and click Deploy.

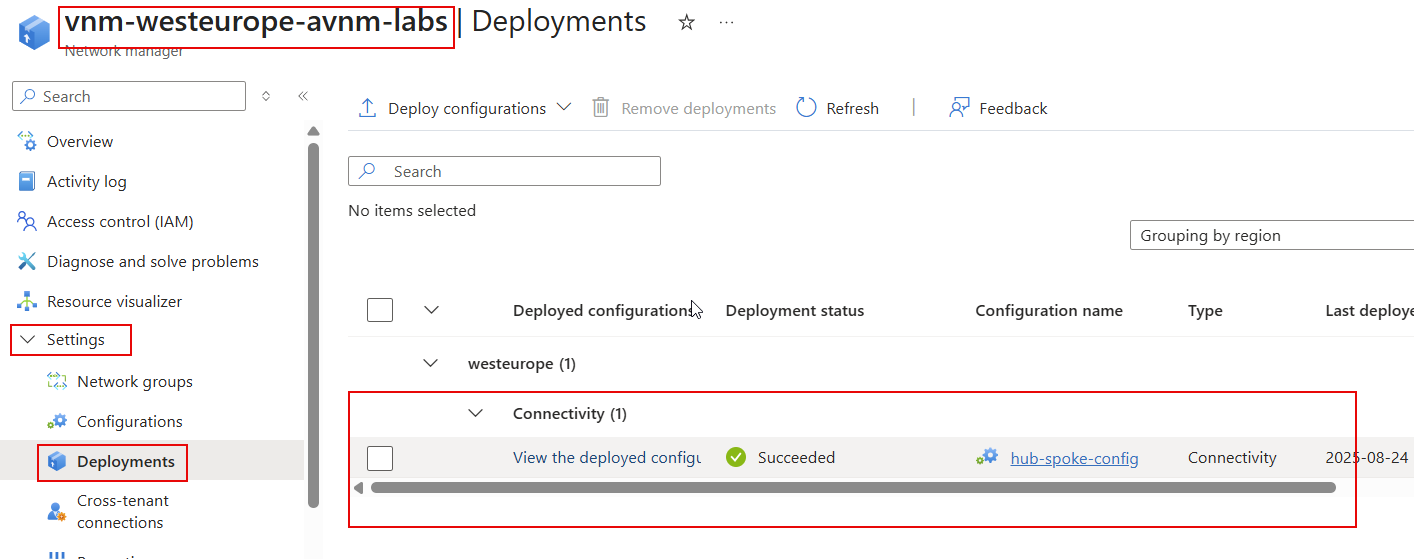

You can always find all deployments under vnm-westeurope-avnm-labs | Settings | Deployments.
After deployment is complete, there should be peering created between the hub and spoke virtual networks.

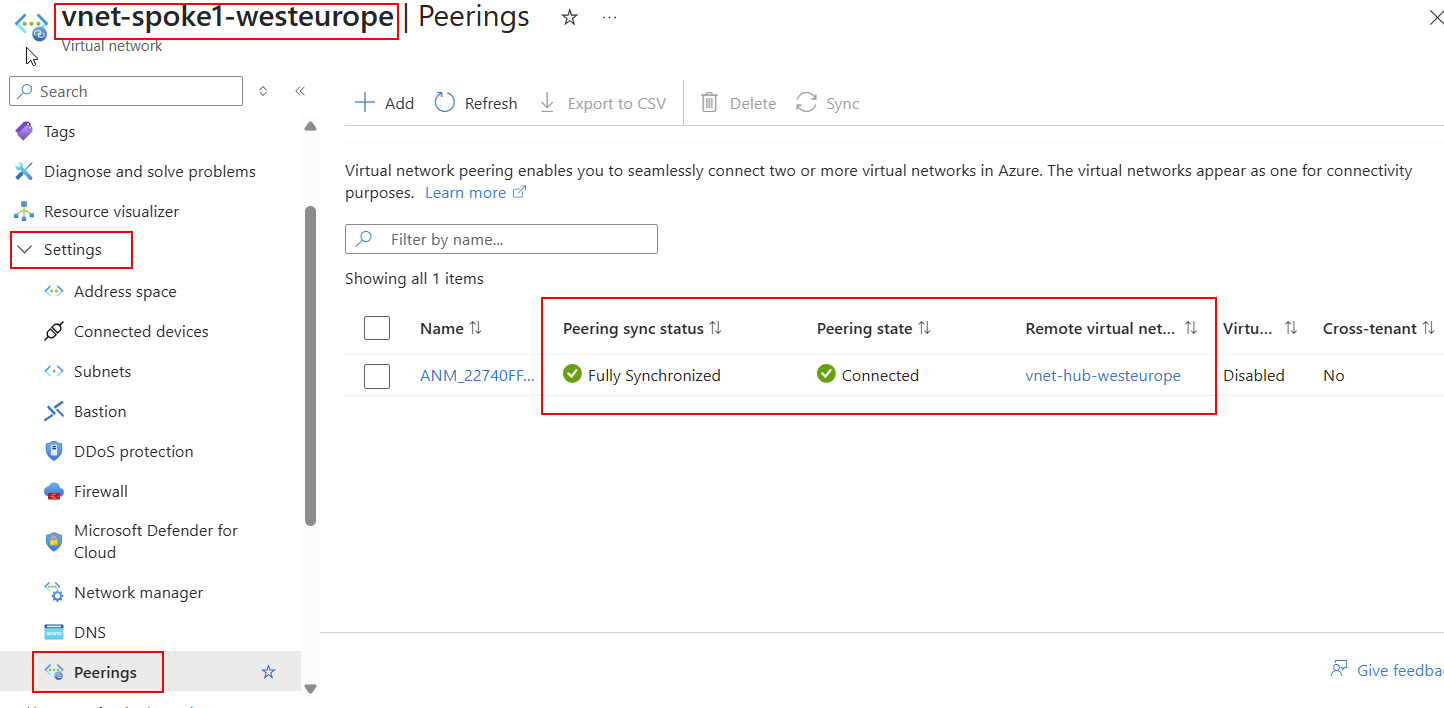

If you check vnet-spoke1-westeurope, you should see a peering connection to vnet-hub-westeurope.

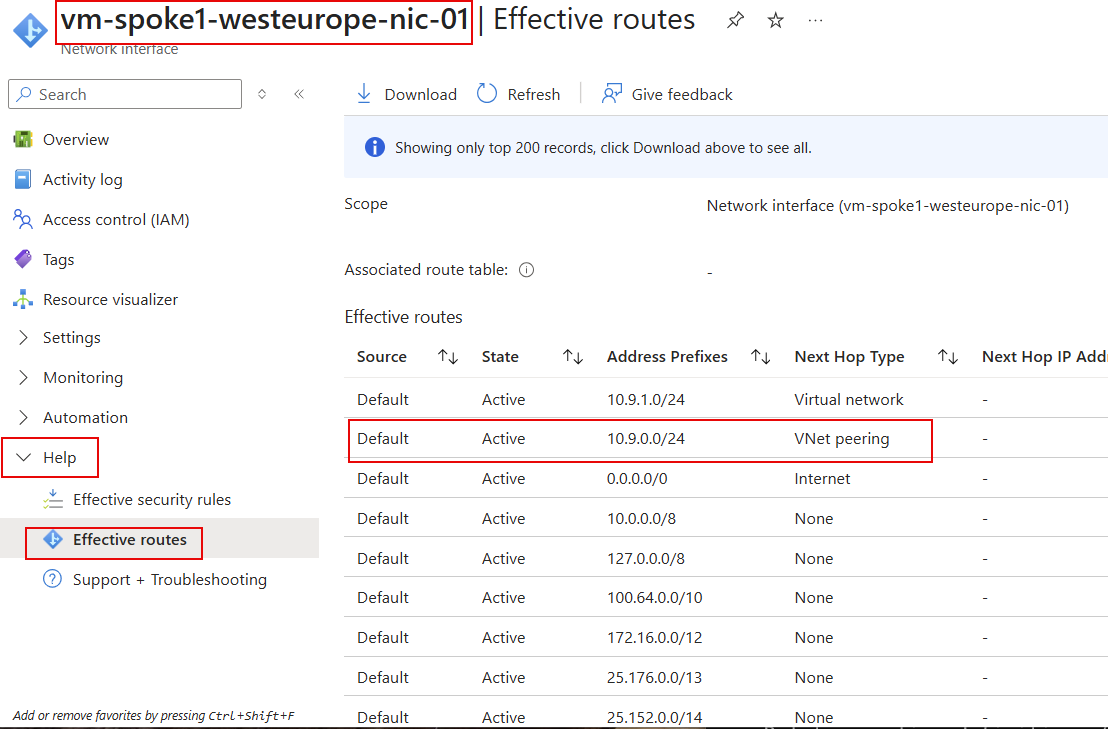

If you check Effective routes for vm-spoke1-westeurope-nic-01, you should see the following new route to vnet-hub-westeurope.
Task #3 - Test connectivity between VMs¶
Connect to vm-spoke1-westeurope using az cli Bastion and ssh extensions. Use iac-admin fooBar123! as a username and password to login.
# Get vm-spoke1-westeurope resource id
$vmId = (az vm show --name vm-spoke1-westeurope --resource-group rg-westeurope-avnm-labs --query id --output tsv)
# SSH to vm-spoke1-westeurope via bastion host
az network bastion ssh --name bastion-westeurope --resource-group rg-westeurope-avnm-labs --target-resource-id $vmId --auth-type password --username iac-admin
From the terminal session, try to ping VMs from hub and spoke2.
Note! IP assined to your VMs might be different, so check them before you run the commands.
# ping hub VM
iac-admin@vm-spoke1-westeurope:~$ ping 10.9.0.132
PING 10.9.0.132 (10.9.0.132) 56(84) bytes of data.
64 bytes from 10.9.0.132: icmp_seq=1 ttl=64 time=3.05 ms
64 bytes from 10.9.0.132: icmp_seq=2 ttl=64 time=1.69 ms
64 bytes from 10.9.0.132: icmp_seq=3 ttl=64 time=1.31 ms
You should get a response from hub VM. Now, try to ping vm-spoke2-westeurope.
# ping VM at vnet-spoke2-westeurope VNet (you may have different IP for your VM)
iac-admin@vm-spoke1-westeurope:~$ ping 10.9.2.4
PING 10.9.2.4 (10.9.2.4) 56(84) bytes of data.
You will not get any response, because there are no connectivity between spokes. Let's enable direct connectivity between spokes using Virtual Network Manager Direct connectivity feature.
Task #4 - Enable direct connectivity between VNets within Network Group¶

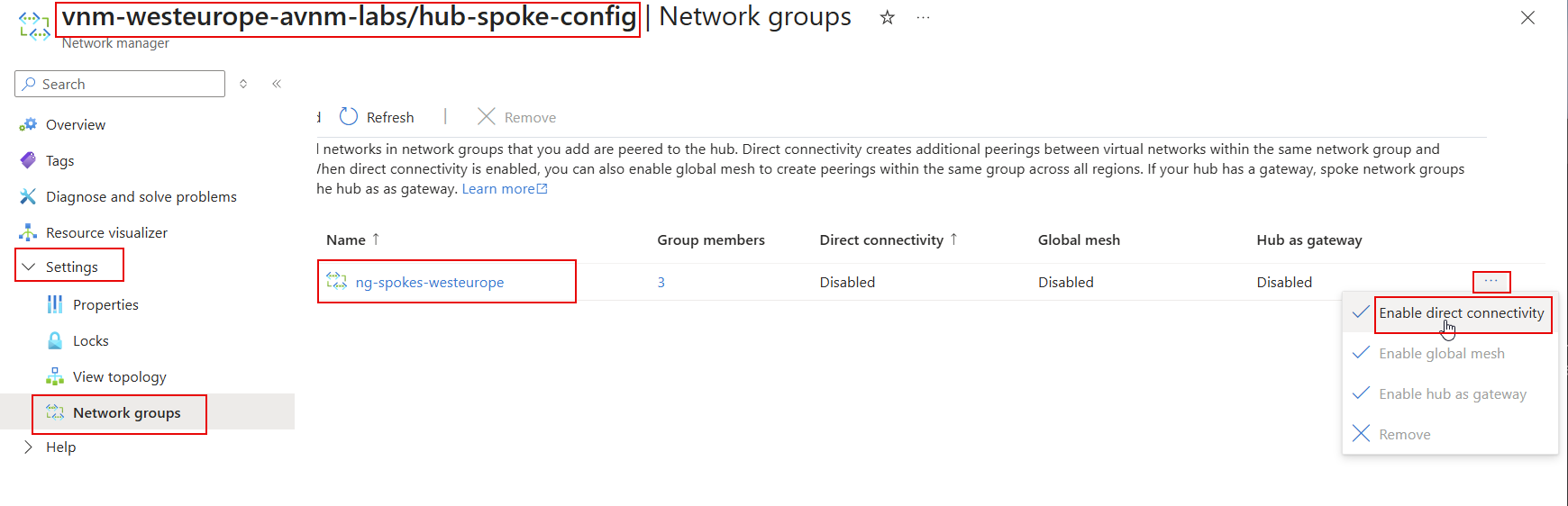

Open hub-spoke-config Connectivity Configuration and navigate to Settings -> Network groups. Select ng-spokes-westeurope Network Group, click ... -> Enable direct connectivity.
When enabled, deploy configuration changes.

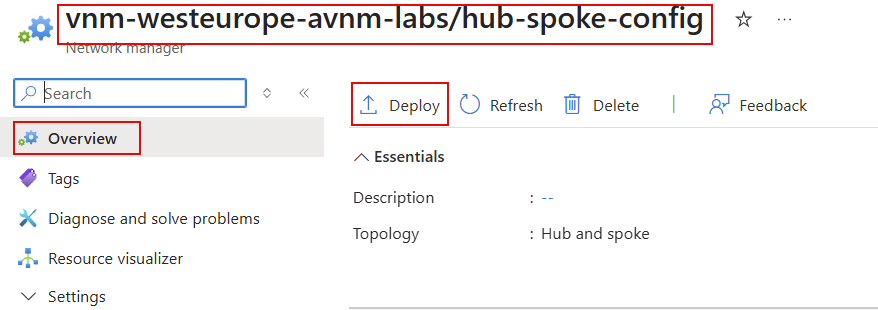

Select hub-spoke-config configuration, West Europe as a deployment region and Deploy.
When deployment complete, check Effective routes for vm-spoke1-westeurope-nic-01.
Note, it might take some minutes for changes to be applied. So if you don't see new routes, wait a couple of minutes and try again.

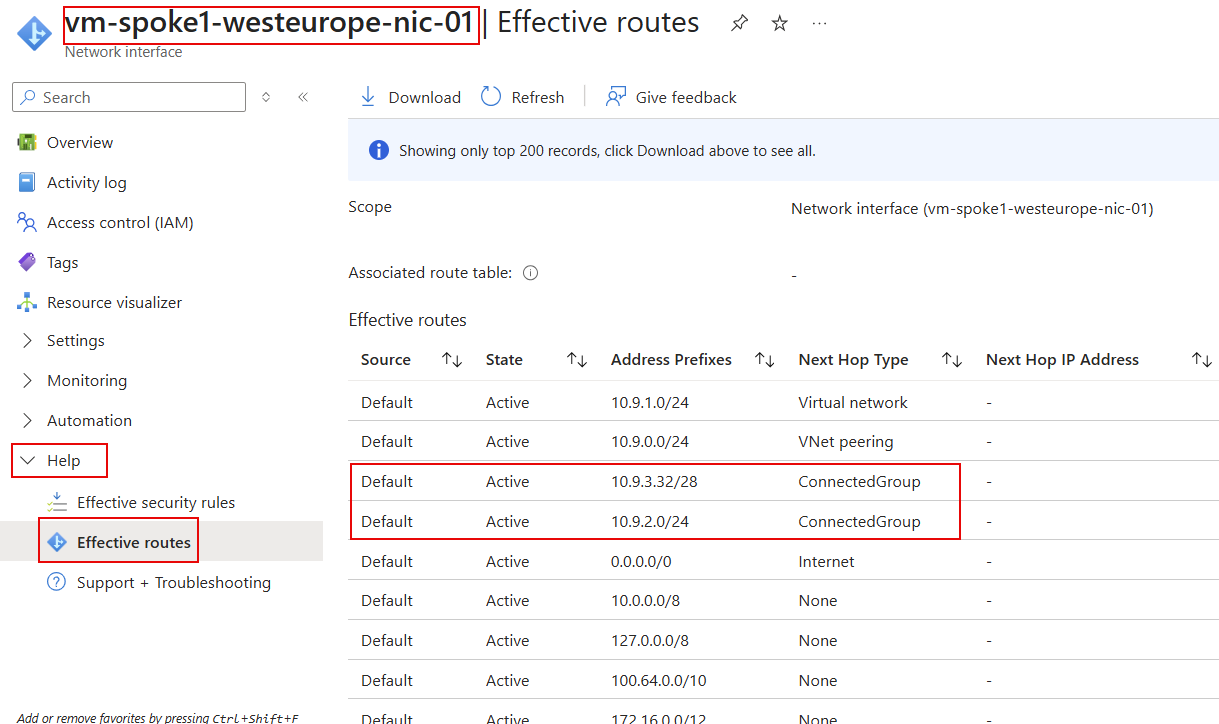

You should now see new routes towards spoke VNets with ConnectedGroup as a Next Hop Type.
If you now go back to the vm-spoke1-westeurope terminal and try to ping vm-spoke2-westeurope, you should get a response.
iac-admin@vm-spoke1-westeurope:~$ ping 10.9.2.4
PING 10.9.2.4 (10.9.2.4) 56(84) bytes of data.
64 bytes from 10.9.2.4: icmp_seq=1 ttl=64 time=2.67 ms
64 bytes from 10.9.2.4: icmp_seq=2 ttl=64 time=1.06 ms
64 bytes from 10.9.2.4: icmp_seq=3 ttl=64 time=0.814 ms
64 bytes from 10.9.2.4: icmp_seq=4 ttl=64 time=1.08 ms
